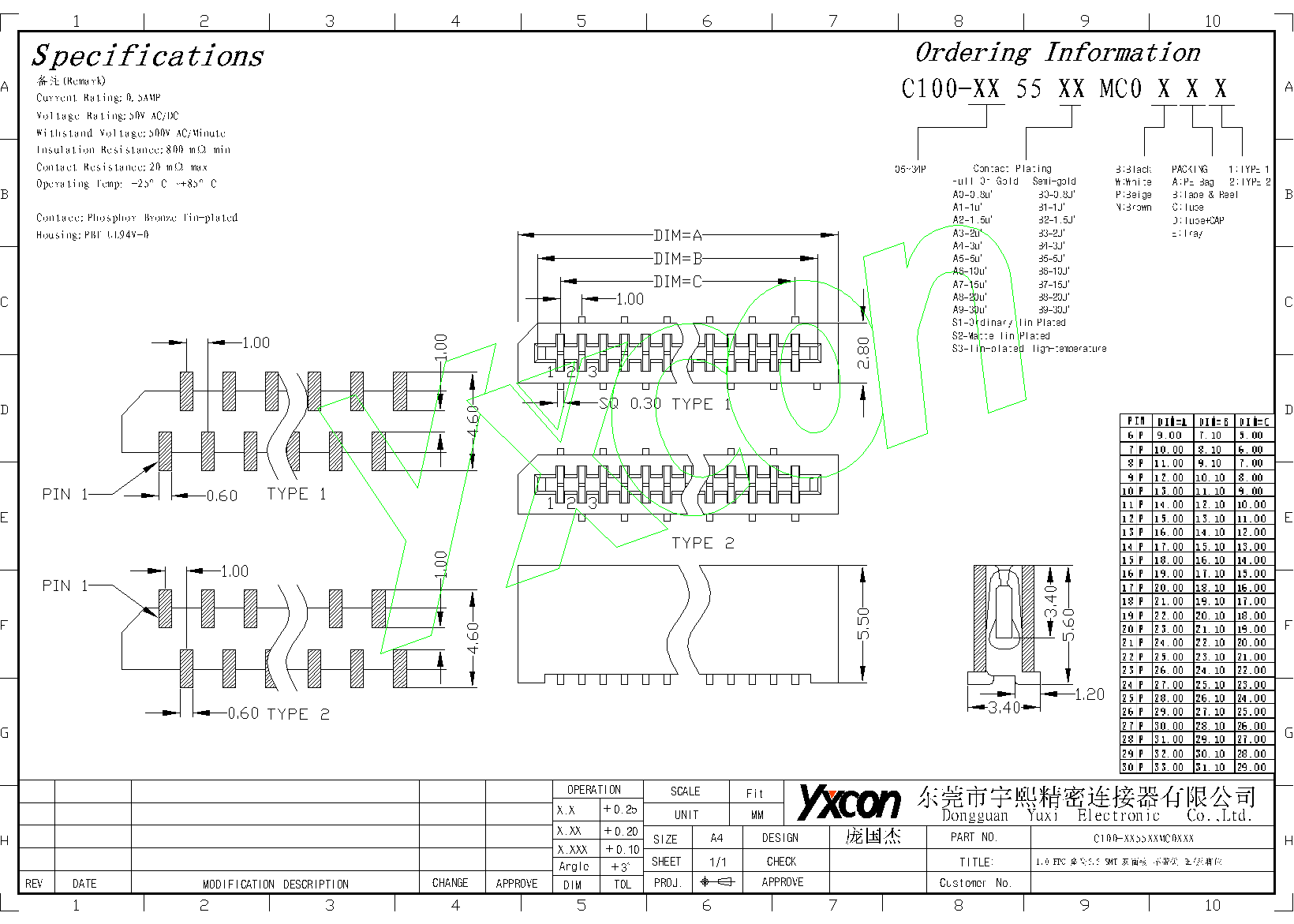

1.0 FPC , SMT, without lock, Positive and negative feet
- This products PDF: download
- Rated current: 1 AMP
- Pin material: Brass
- Plastic material: PA9T
- Plastic height: 5.5mm
- Withstand voltage: AC 500V/min
- Contact resistance: 20 milliohm Max
- Insulation resistance: 1000 MΩ Min
- Working temperature: -40°C to 105°C
