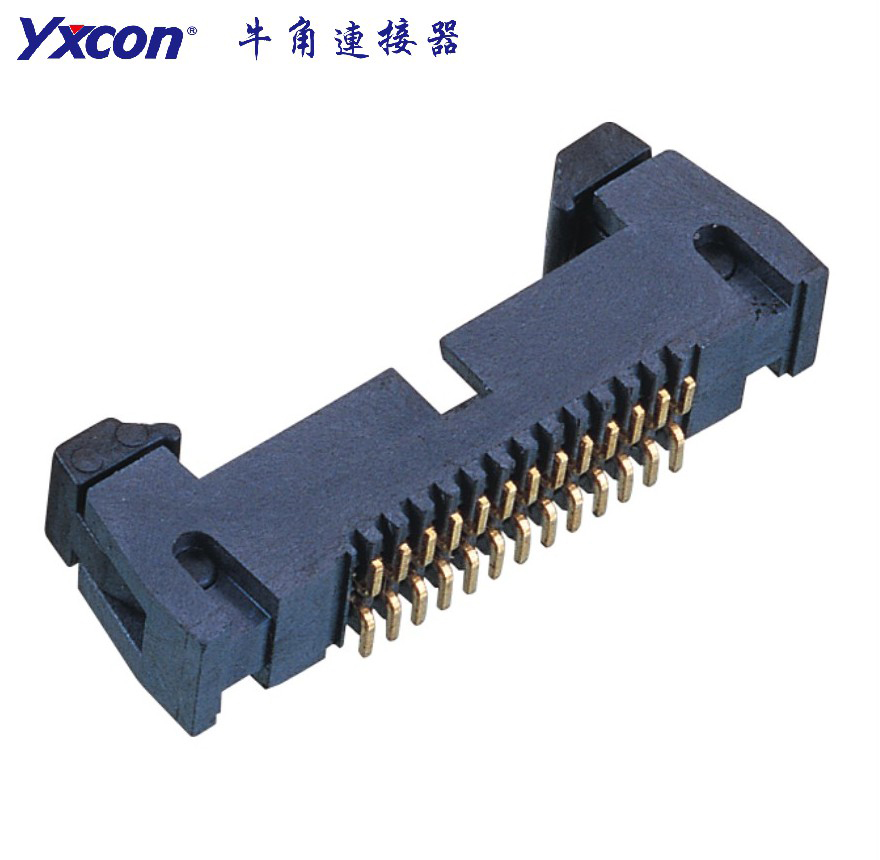

Pitch 1.27mm Ejector Header Connector SMT Gold plating PA9T LCP
Pitch 1.27mm Ejector Header Connector SMT Gold plating PA9T LCP
Online Inquiry

Ejector Header Ejector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.Classificat

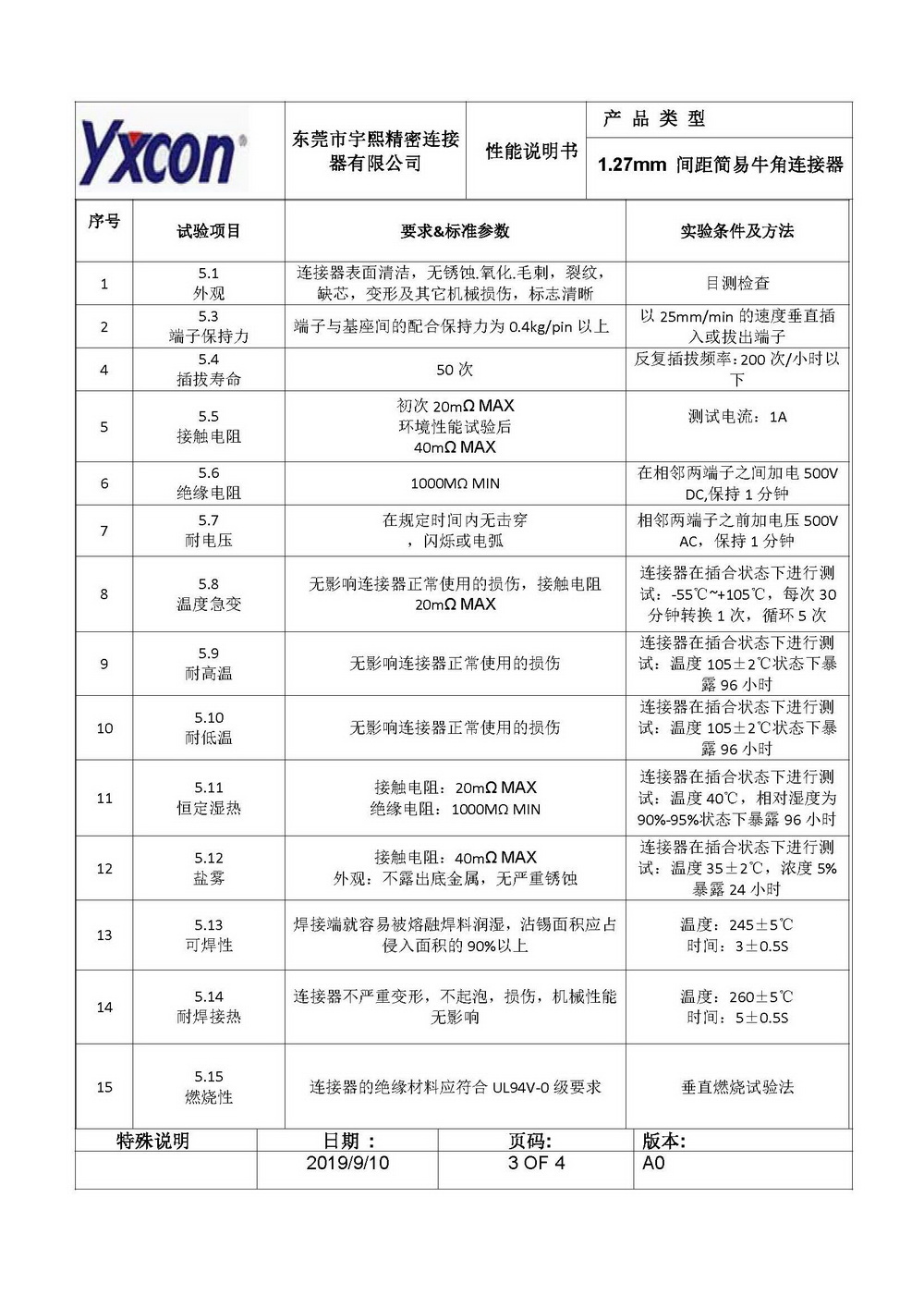

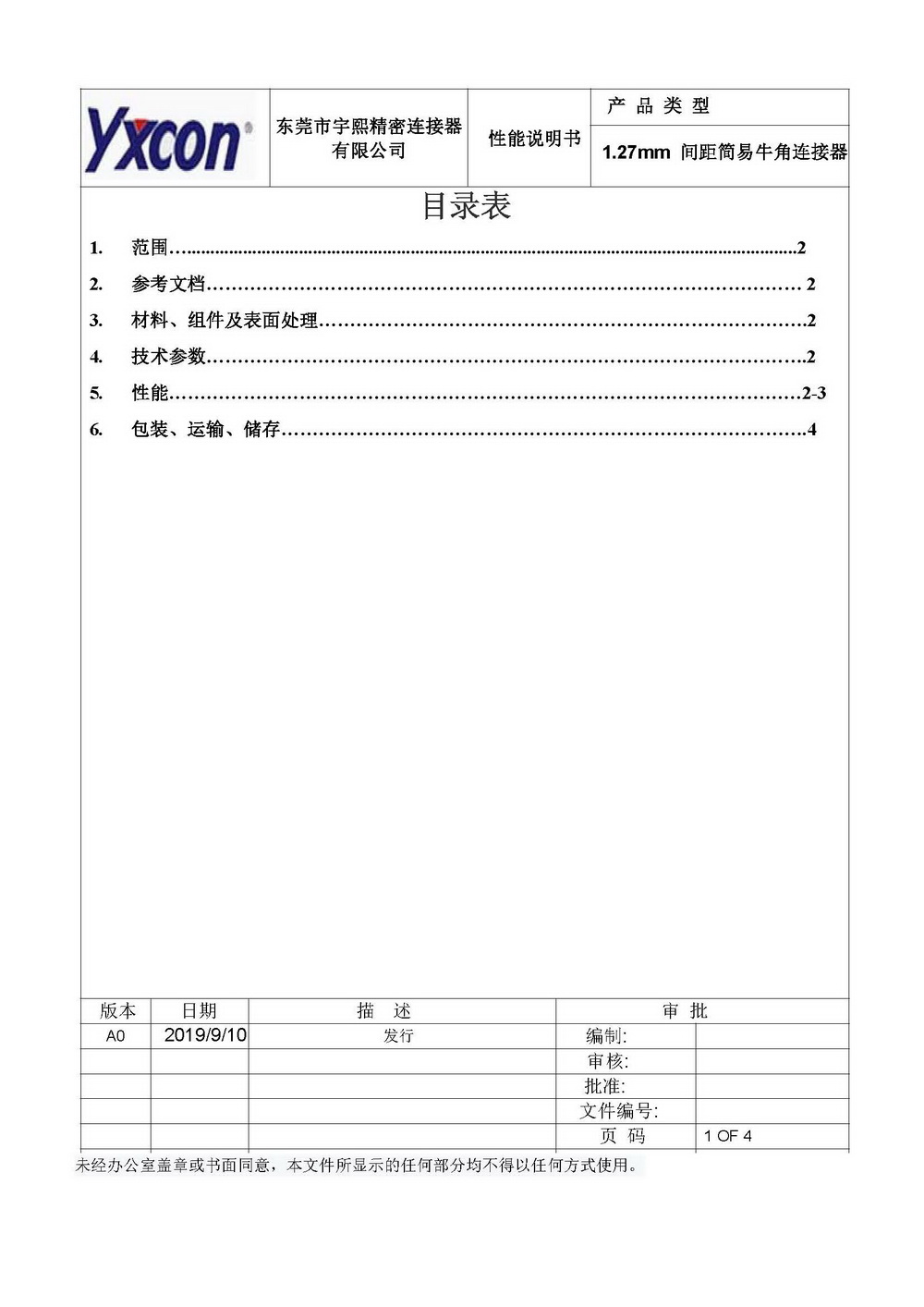

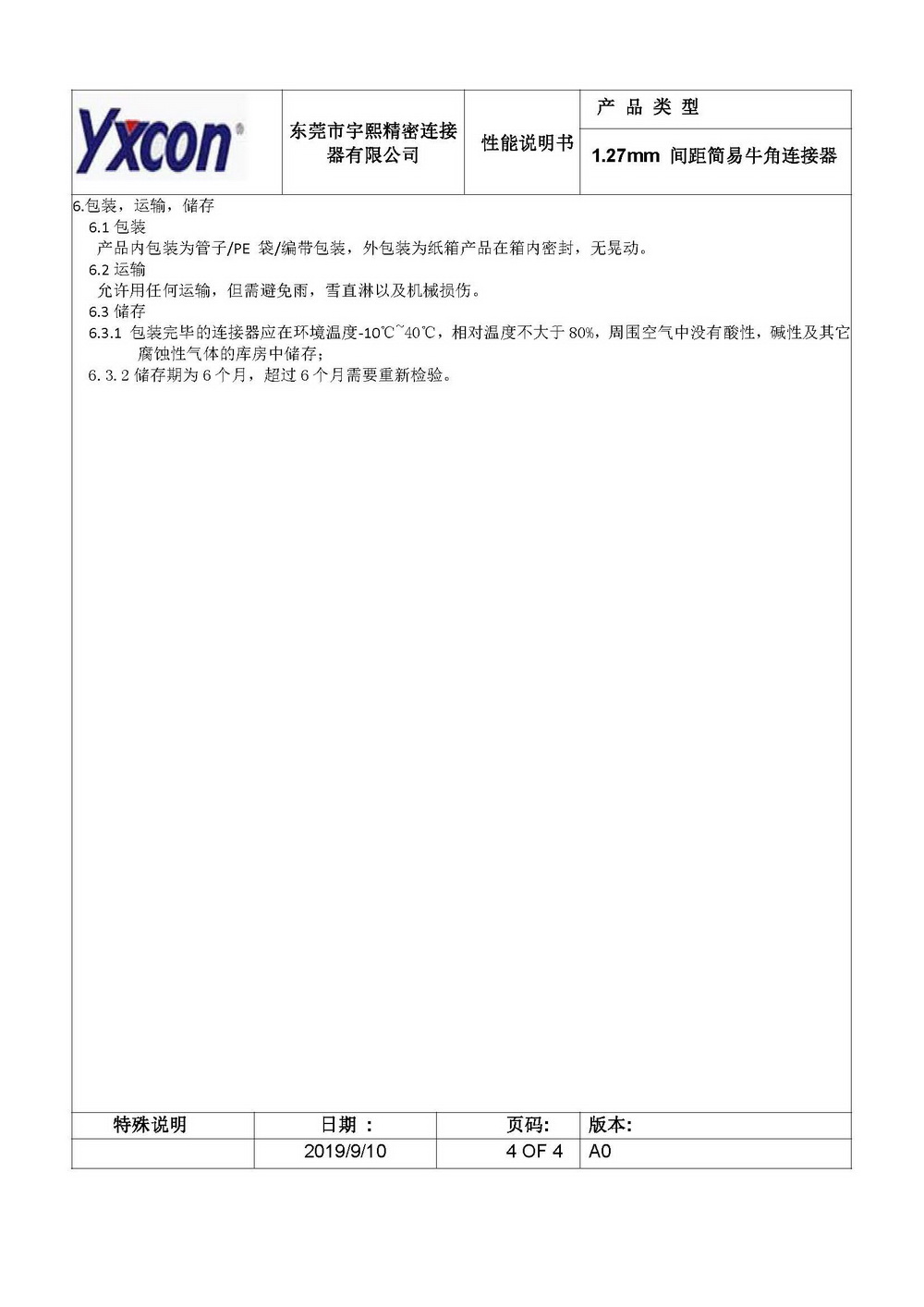

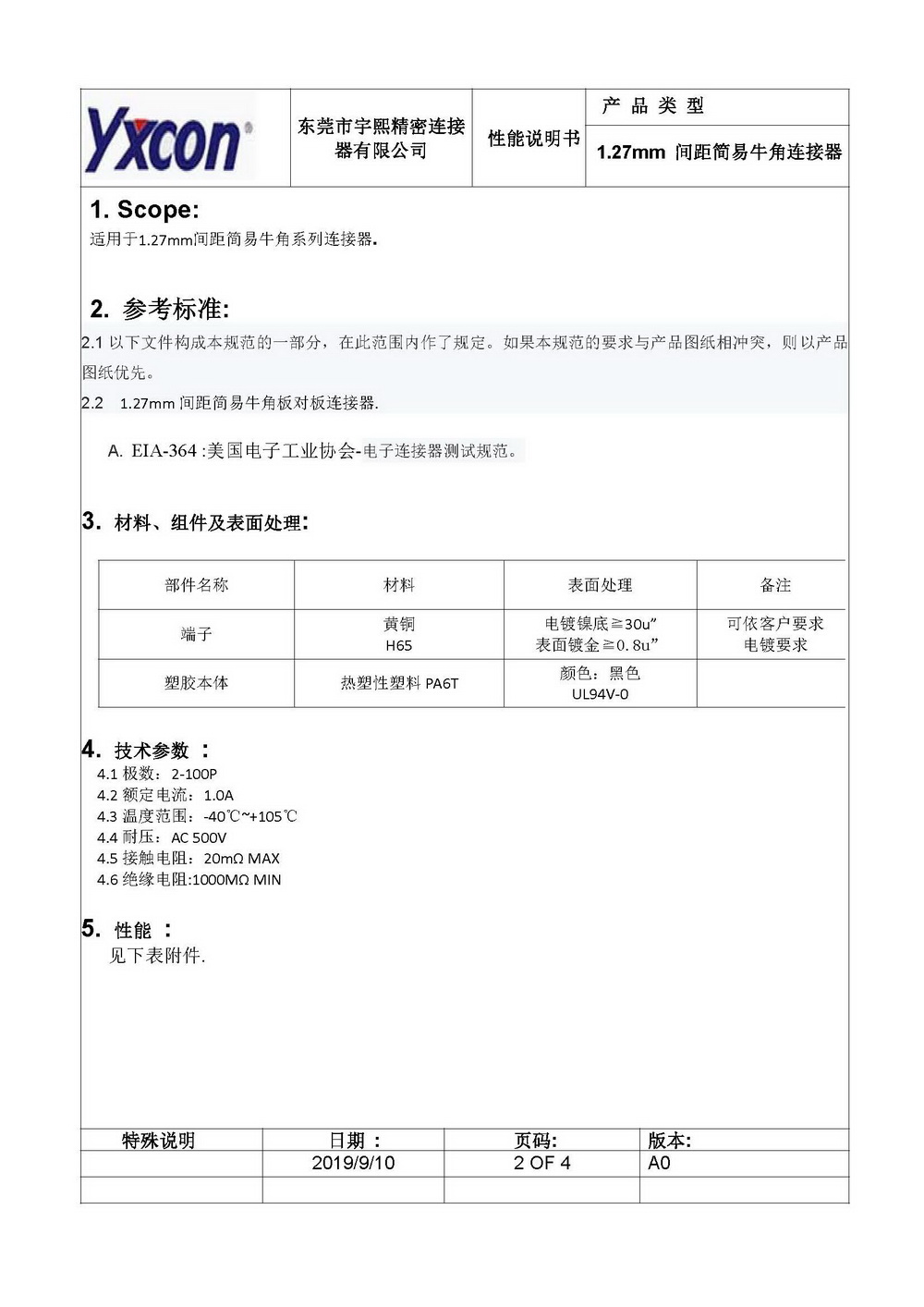

  • This products PDF： download
  • Supporting product PDF： download
  • Pin bit： 6-64P
  • Rated current： 1 AMP
  • Pin material： Brass
  • Plastic material： PA6T
  • Plastic height： 6.3mm
  • Withstand voltage： AC 500V/min
  • Contact resistance： 20 milliohm Max
  • Insulation resistance： 1000 MΩ Min
  • Working temperature： -40°C to 105°C
  • Electroplating thickness： 0.8u

Ejector Header

Ejector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.

Classification of Ejector Header: according to the spacing of PIN pins, Ejector Header with spacing of 1.27MM, Ejector Header with spacing of 2.0MM, Ejector Header with spacing of 2.54MM; According to the connection mode, it can be divided in o direct insrtion (180 degrees), bent insrtion (90 degrees) and SMT

Application of Ejector Header: Mainly used in computer equipment, industrial automation equipment, digital products, security equipment, electronic instruments, new energy products, medical devices and other fields

Product Name:Dongguan supplier Pitch 1.27mm 2.0mm 2.54mm 2.5mm  straight, smt and   right angle  eject header connector with best price
Description:

Pitch: 1.27mm 2.54mm,2.0mm 1.0mm 5.08mm 3.0mm, 2.5mm

Row Number :one or dual row

Color: Black , Grey

Orietional :straight, SMT, U type , right angle

Insulator Height for choice:4.9mm ,5.5mm ,5.7mm ,6.5mm ,7.3mm ,9.0mm ,9.4mm
Contact Material:Brass
Contact Plating:Gold (Au) or Tin (Sn) Plated over Nickel (Ni)
Insulator/Plastic  Material:PA6T ,PA9T ,LCP , PBT, PA66, PPS, PA115 accpet customer special requirement
Rating Current:1.00AMP
Contact Resistance:20mΩ Max
Insulating  Resistance:1000  MΩ  Min
Withstanding Voltage:AC  500V/Minute
Temperture:-40°  C     to    +105°  C
Material Flammability Rating:UL94V-0


板对板连接器板对板连接器板对板连接器板对板连接器

label: Pitch 1.27mm Ejector Header Connector, SMT Ejector header connector,Gold plating Ejector header, PA9T LCP ejector connector
