Pitch 2.0mm Machined Female Header Straight PPS housing
Pitch 2.0mm Machined Female Header Straight PPS housing
Online Inquiry

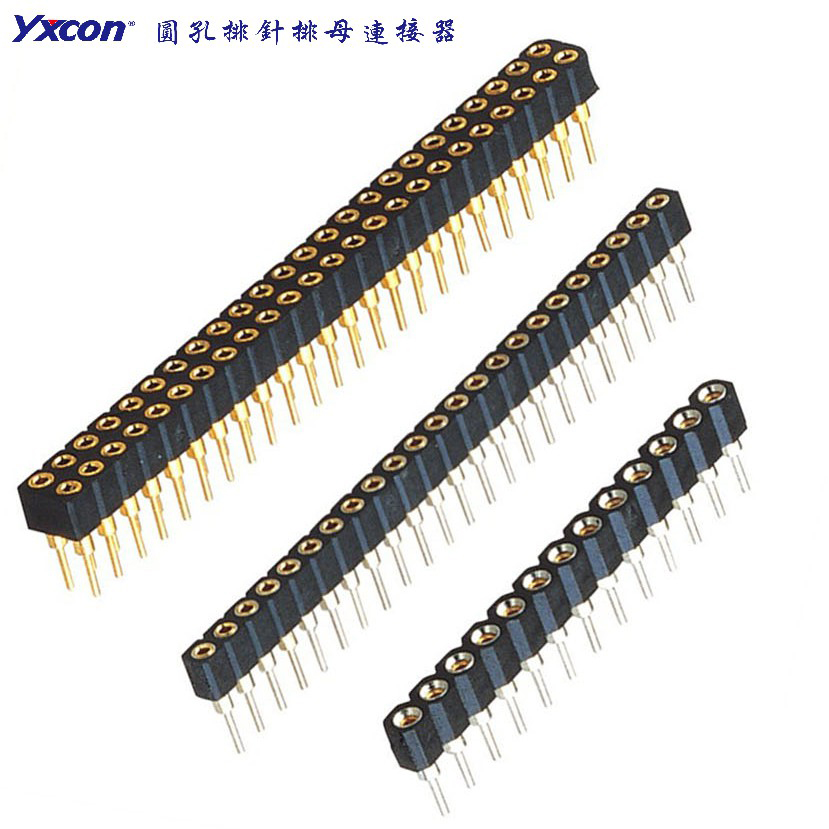

Pitch 2.0mm Machined Female Header Straight

  • This products PDF： download
  • Supporting product PDF： download
  • Pin bit： 2P～40P
  • Rated current： 2 AMP
  • Pin material： Brass
  • Plastic material： PPS
  • Plastic height： 2.8mm
  • Withstand voltage： AC 500V/min
  • Contact resistance： 20 milliohm Max
  • Insulation resistance： 1000 MΩ Min
Pitch1mm,1.27mm,2mm,2.54mm,3.96mm,5.08,1.778mm
MaterialPA6T,PA9T,LCP
Insrlator MaterialPolyester(UL94V-0)
Contact MaterialBrass
Contact PlatingAU OR SN OVER 40u" NI
Current Rating1.5Amps
Withstanding VoltageAC 500Vmin/Minute
Insulation Resistance1000M Min
Operation Temperature—40℃ to +150℃
PackageBag packing,Tube packing,Tape&Reel packing
ApplicationPcb board
Positions1-40pin
SamplesProvided
ConfirmationDrawing will be provided before production
