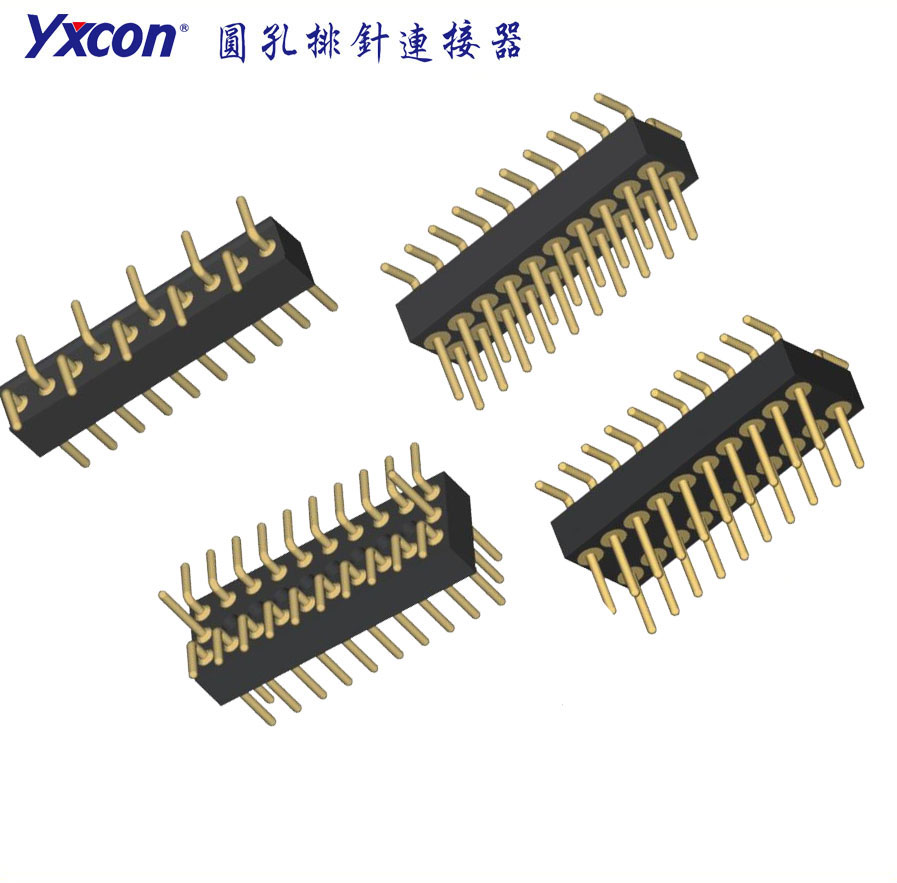

Pitch 1.27mm SMT Machined Pin Header Connector

Sample online order

Online Inquiry

Manufacturer 1.778/2.54/2.0/1.27 mm Pitch Round Pin Header 20 pin IC SocketProduct DescriptionSpecificationPitch1mm,1.27mm,2mm,2.54mm,3.96mm,5.08,1.778mmMaterialPA6T,PA9T,LCPInsrlator MaterialPolyeste

This products PDF： download
Supporting product PDF： download
Pin bit： 2P~50P
Rated current： 1 AMP
Pin material： Brass
Plastic material： PPS
Plastic height： 1.9mm
Withstand voltage： AC 500V/min
Contact resistance： 20 milliohm Max
Insulation resistance： 1000 MΩ Min

Manufacturer 1.778/2.54/2.0/1.27 mm Pitch Round Pin Header 20 pin IC Socket

Product Description

Specification
Pitch	1mm,1.27mm,2mm,2.54mm,3.96mm,5.08,1.778mm
Material	PA6T,PA9T,LCP
Insrlator Material	Polyester(UL94V-0)
Contact Material	Brass
Contact Plating	AU OR SN OVER 40u" NI
Current Rating	1.5Amps
Withstanding Voltage	AC 500Vmin/Minute
Insulation Resistance	1000M Min
Operation Temperature	—40℃ to +150℃
Package	Bag packing,Tube packing,Tape&Reel packing
Application	Pcb board
Positions	1-40pin
Samples	Provided
Confirmation	Drawing will be provided before production
