Ejector Header
Ejector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.
Classification of Ejector Header: according to the spacing of PIN pins, Ejector Header with spacing of 1.27MM, Ejector Header with spacing of 2.0MM, Ejector Header with spacing of 2.54MM; According to the connection mode, it can be divided in o direct insrtion (180 degrees), bent insrtion (90 degrees) and SMT
Application of Ejector Header: Mainly used in computer equipment, industrial automation equipment, digital products, security equipment, electronic instruments, new energy products, medical devices and other fields

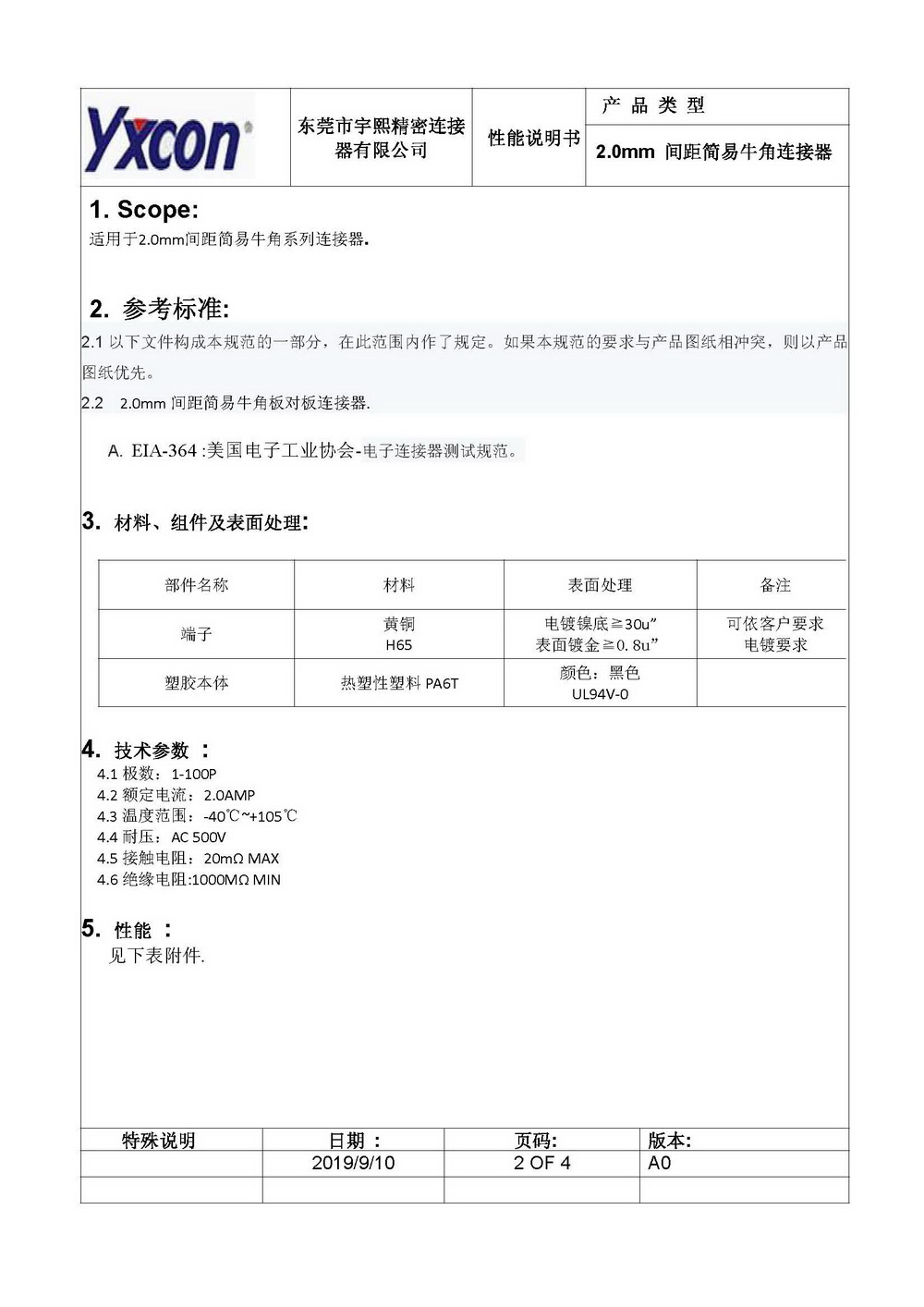

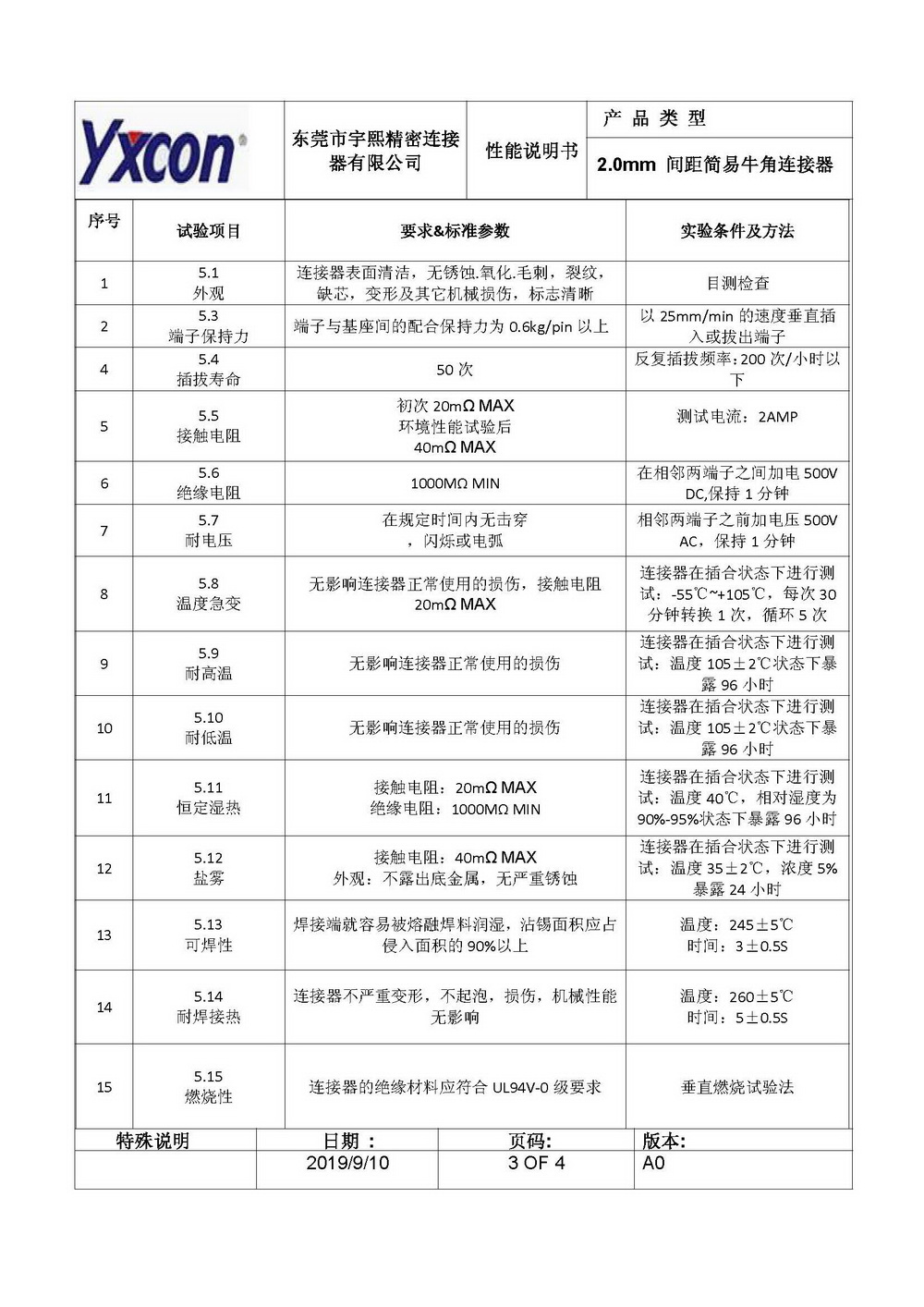

Specification
| Name | Box ejector connector |
| Pitch | 0.8mm/1.0mm/1.27mm/2.0mm/2.54mm/3.96mm/5.08mm |
| Type | DIP/Angle/SMT Single/Double Row |
| Insulator Color | Black/Gray/Colorized |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 1.5A AC |
| Current Resistance(max) | 20m ohm |
| Withstand Voltage(for 1 minute) | 500V /AC |
| Insulation Resistance(min) | 1000m ohm |
| Contact materials | Brass |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PBT LCP PA6T PA9T |

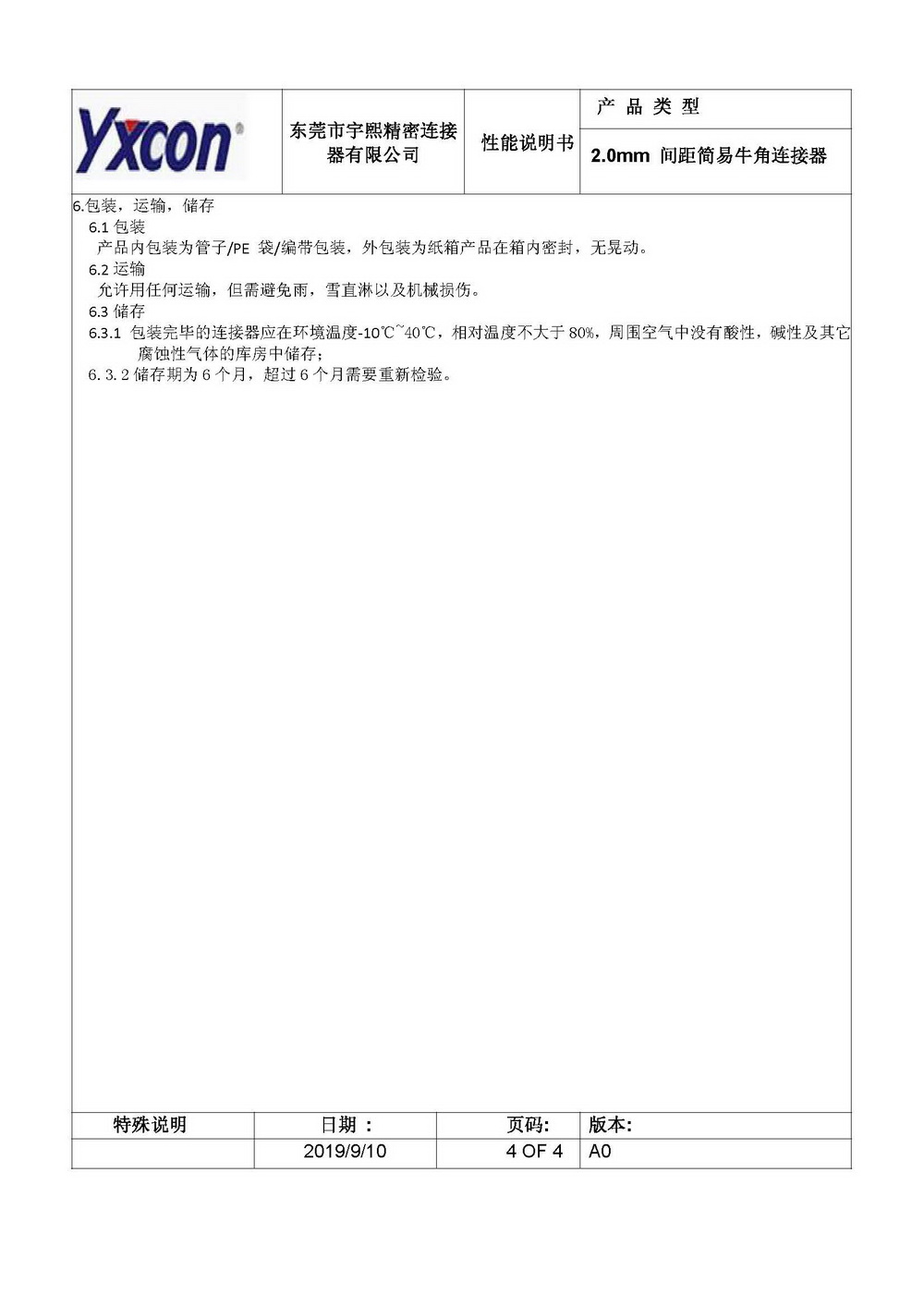

| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
